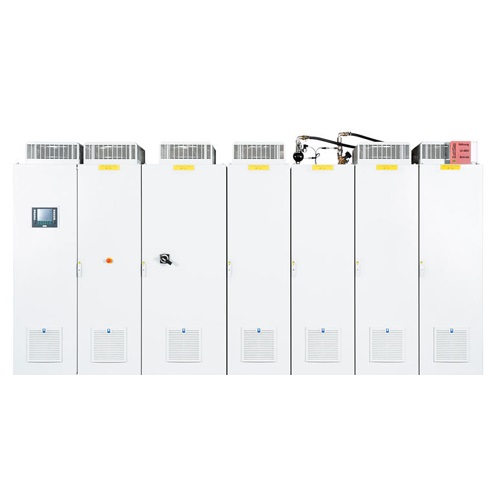

Output voltage: 5 V to 1,000 V DC

Output current: -900 A to +900 A DC (larger range available on request)

Output power: 10 kW to 230 kW (larger range available on request)

Slew rate: 40 V/ms

Switching frequency: 30 kHz

Accuracy: voltage 0.2% FSO, current 0.2% FSO

Ripple: < 0.5 V

Interface: EtherCAT, Profibus DP, CAN

Supply: 3~400 V AC (690 V AC optional)

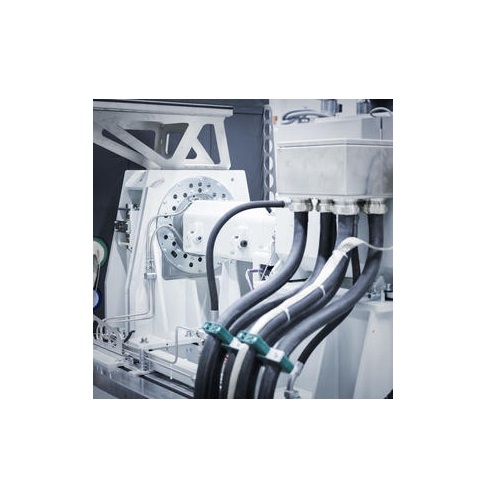

ELECTRIC MOTOR TEST BEDS

Speeds up to 40,000 rpm

Low vibration design

Control-based compensation for residual vibrations

KS frequency converter technology

Highly dynamic control

Accurate performance analysis

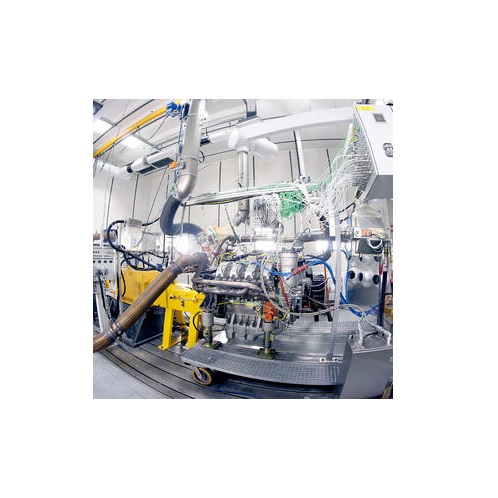

ENGINE TEST BEDS

General Description

Power from a few kW up to the MW level

Speeds up to 24,000 rpm

KS converter technology

Dynamic control

Flexible integration of sensors and peripherals

Open system with various interfaces

KS sensor boxes with interchangeable modules for shortening calibration times

TGA

Consistent: technology from a single source

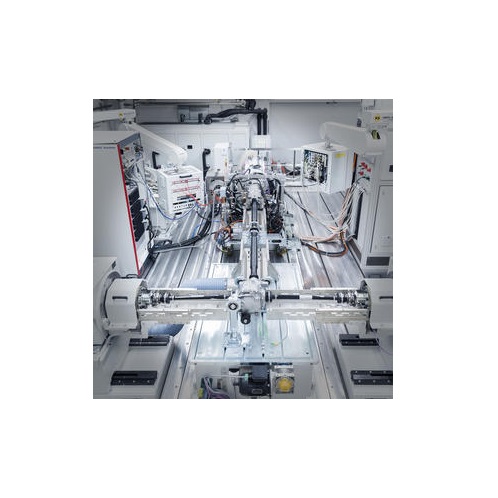

TRANSMISSION & POWERTRAIN TEST BEDS

General Description

Efficiency

Noise testing

Endurance strength

Environment simulation (temperature, humidity, pollution)

Torque test bed

Gear changes, shifting forces, synchronisation (manual gearbox to twin-clutch transmission)

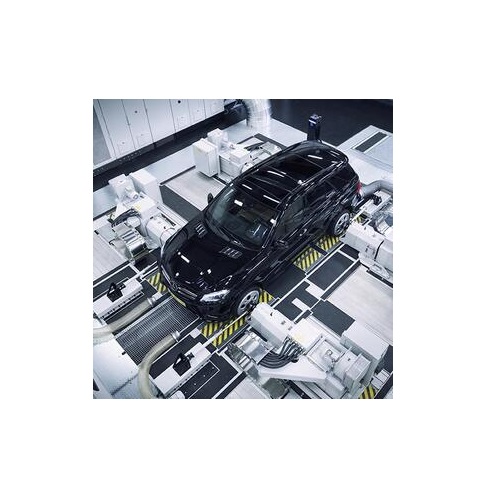

CHASSIS DYNAMOMETERS

General Description

Range determination, R&D testing

Automatic control for accelerator, clutch and gear lever

Freely configurable test programs

Exhaust volume recording

Air stream simulation
